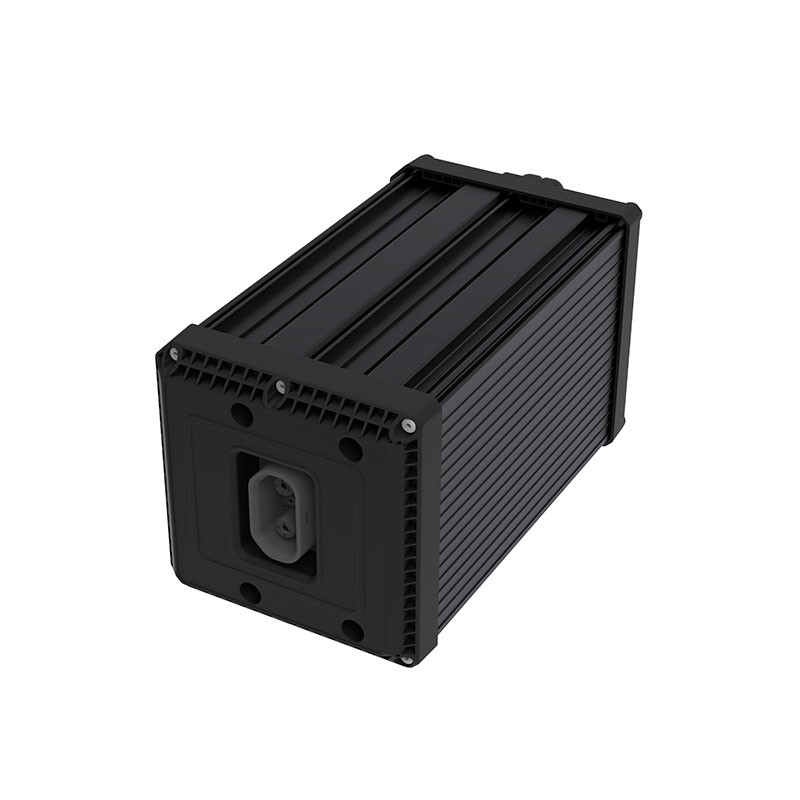

CSP1280-12.8-A
Industry battery pack
LFP Prismatic Cell
IP65+IK08
-20℃ to +50℃
Description
Nominal voltage :12.8V
Nominal energy:1280Wh
Nominal capacity: 100Ah
Rated output power:384W
Cell type: LFP Prismatic Cell
Max. Continuous Discharge Current: 30A
Max. Peak Discharge Current: 50A
Operating Temperature:0℃~50℃ Charging;-20℃~50℃ Discharging
Certification:IEC62619, UN38.3
Dimensions(L/W/H):179mm×179mm×361mm
Weight:12Kg
Communication:RS-485 / CAN
Scalability:Max. 16pcs in parallel
